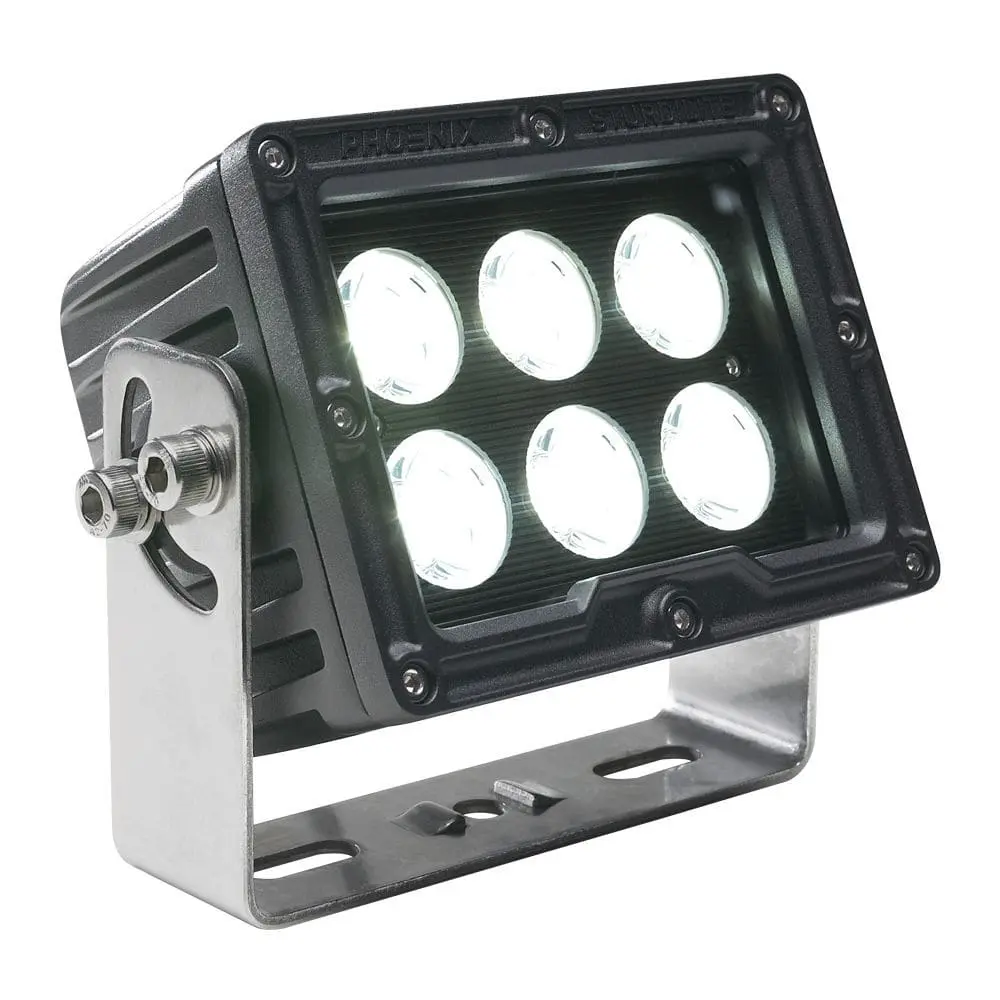

Phoenix Lighting Low-voltage LED Floodlight, Sturdilite ® E Series
Part number: E56-FL
- Durable, economic line of LED fixtures
- Lightweight, compact design ideal for use on mobile equipment
- Spot and flood optics minimize glare and provide precise optical control
- LED technology increases efficiency, eliminates maintenance and supports green initiatives
| Specification | Details |
| Construction | Die cast aluminum housing |
| Finish | Black powder coat |
| Hardware | Stainless steel |
| Lens | Impact-resistant polymer, Spot (SP) and flood (FL) optics, Precise optical control minimizes glare |
| Light source | Cree LED; 36W; 1800 lumens; CCT 6000K; 50,000 hour rated life |
| Power source | 12-48V DC (E56); 10.00 inch cord with Deutsch connector; Over-voltage, over-temperature and reverse polarity protection |
| Wiring | Stranded wires |
| Ambient operating temperature | -40°C to +65°C; Light output regulation in high ambient temperature environments protects the life of the LEDs |
| Shock | 65G along 3 axes |
| Vibration | 5 Grms, 100-2200Hz along 3 axes |
| Salt spray | Tested to ASTM B117 for 1000 hours |
| Aiming | 90° aiming capability |
| Mounting | Stainless steel harp |
| Weight | E56: 4.2 lb (1.9 kg) |

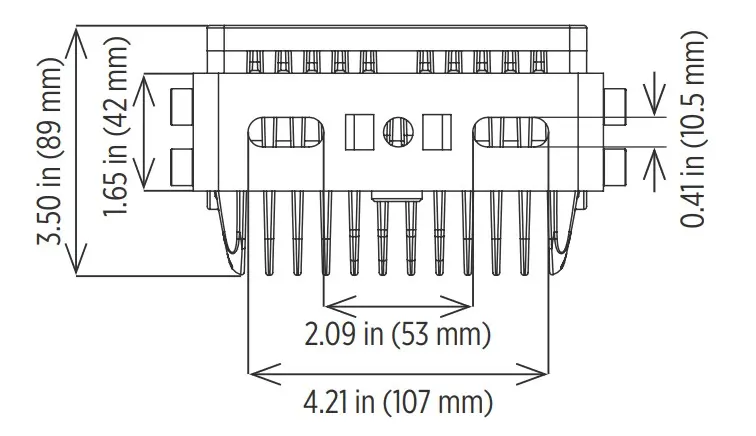

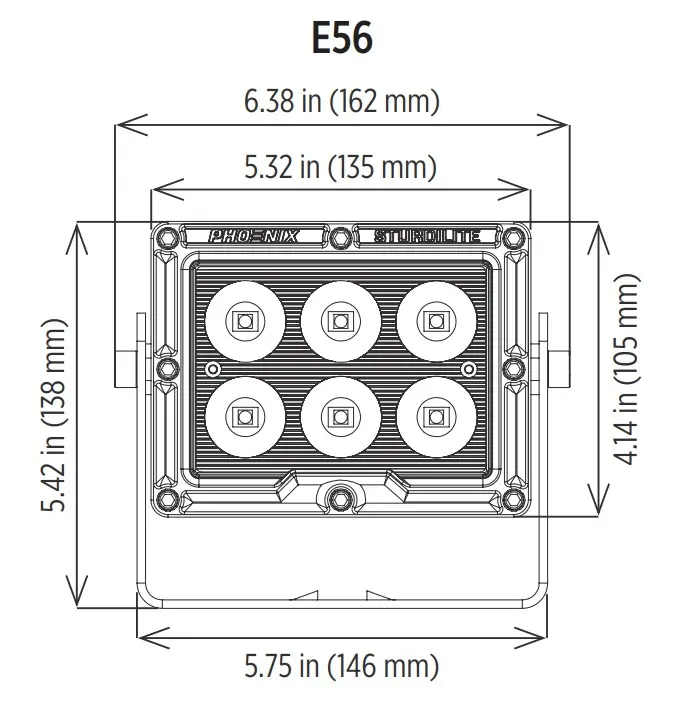

| Case size | E56: 20.47 in x 7.87 in x 9.84 in |
| Manufacturer: Phoenix Lighting |
