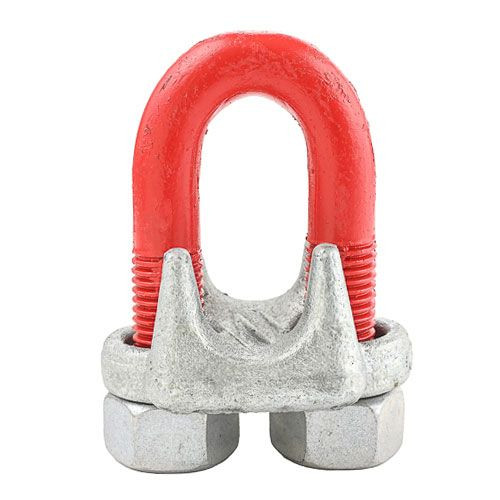

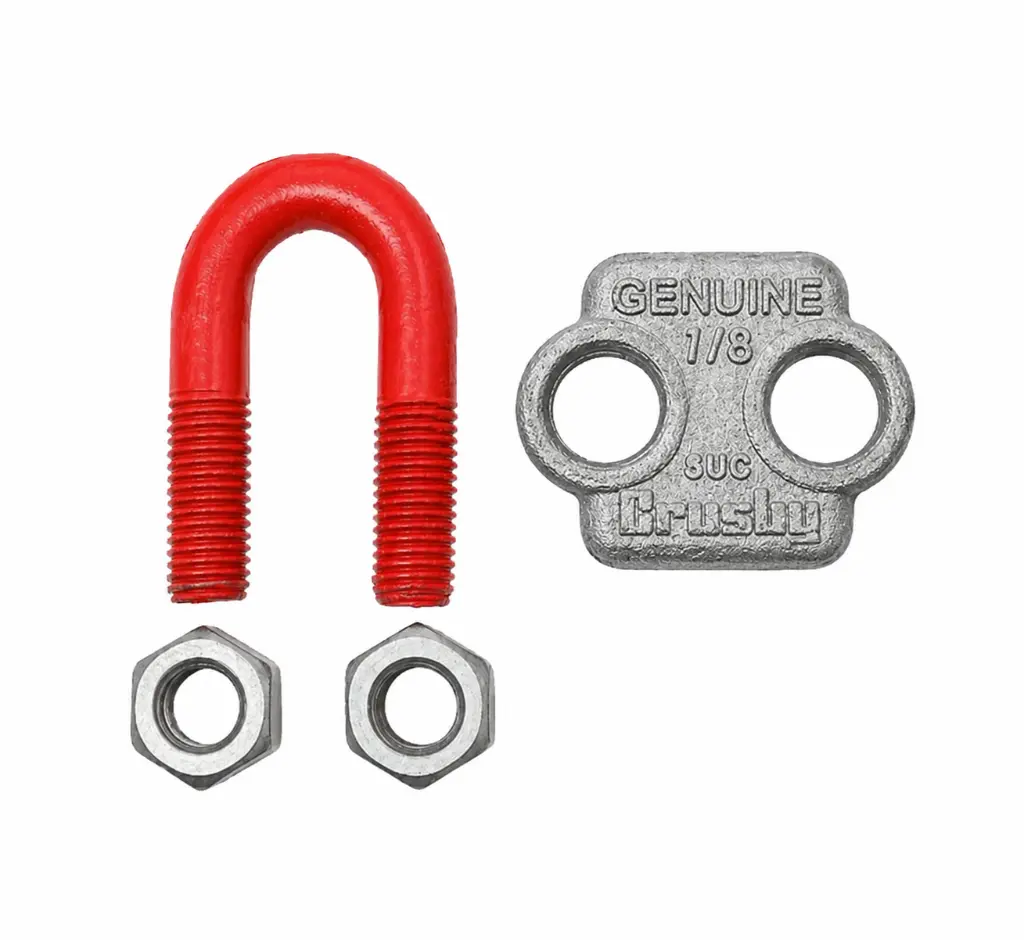

Crosby G-450, Wire Rope Clip, Size 1/8"

Part number - G-450, #1010015

Signature Red U-Bolt® for instant identification
Galvanized finish for corrosion and rust resistance
Forged steel bases on sizes 1/8" through 2-1/2" and 3"
Cast steel bases for 2-3/4" and 3-1/2" sizes
Rolled threads on sizes up to 1-1/2"
Marked with Crosby name/CG, size, and PIC for traceability
Individually packaged with application instructions
High efficiency ratings — 80% or 90% depending on size
Size Range: Available in sizes from 1/8" (3 mm) to 3-1/2" (90 mm) rope diameter, covering applications from light-duty rigging to heavy industrial lifting.

Standards & Approvals: Meets or exceeds ASME B30.26 and other Crosby-specific performance benchmarks including fatigue life, impact resistance, and material traceability.
